General Purpose Rig
One Up One Down Rig Components
Tubing Boom
1 x Trace Swivel
1 x Bead
1 x Link Approx. 500 mm 30-60lb BS line, should be at least as strong as the main body line
This can be replaced by a French boom or other wire boom.
Main Body
1 x Trace Swivel
1 x Avis Boom or twisted wire boom
2 x Crimps
1 x 6 – 3/0 hooks
Approx. 500 to 1500 mm length 30-60lb BS main line
Snoods
500 to 1000 mm 10-30lb BS clear nylon or fluorocarbon
1 x 6 – 5/0 hooks
The Rig Body
1. Thread the line through the tubing boom and attach the swivel to the top. Thread on the bead and tie on the link to the other end.
2. Tie a swivel to the top of the trace, thread on a crimp / Avis boom / crimp and then tie the bottom to the swivel above the boom, a link can be added here for quick changes. Locate the boom and crimp in place.
3. Tie a section of the snood line to the Avis boom then attach the hook together with any attractors. Beads for smaller fish and general fishing, muppets etc. for cod.
4. Tie the snood to the final swivel and then the hook to the end together with any attractors. The drawing below shows a spinner blade for general fishing but any attractor can be used.
5. Attach the trace swivel to the link at the bottom of the boom.
Flutter spoon for cod and ling
Tutorial on how to make flutter spoons

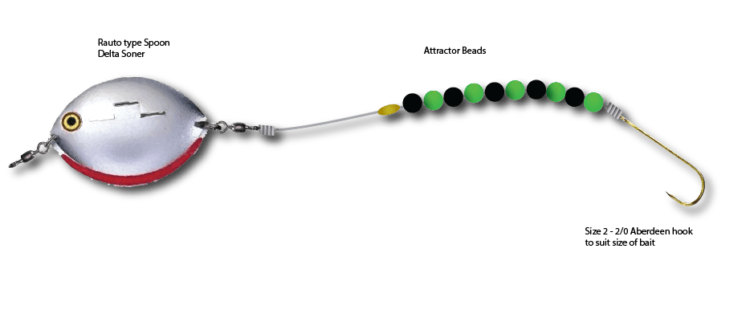

Rauto type spoon for plaice
A two up rig can be produced by adding an additional Avis boom above the boom and for a two down rig add a dropper by using a trapped swivel or formed by a cut blood loop.
Vary the line strengths and types according to the target species for instance heavy duty snoods will be required for spurdogs.
